• Product features:High reliability, long life, environmental protection and energy saving, ultra-high light power, concentration and high efficiency sterilization & nbsp;

  • Application fields:Sterilization and disinfection (especially dynamic water sterilization and air sterilization), medical phototherapy, optical sensor, biological analysis / detection & nbsp;

270~280 nm


80~150 mW

Optical power

400 mA



Irritation angle




Voltage groups

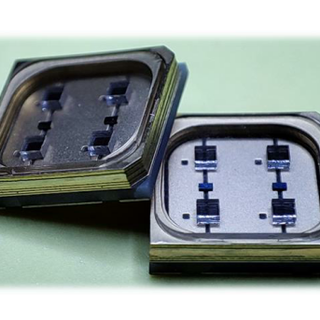

  • Product photos
  • Device structure


    Circuit connection


    Recommended pad

    • A single device contains two kinds of chips, UVC and zener diode. Zener diode can protect UVC from ESD;

    • The front notch is the negative pole, the back corner is the negative pole, and the round hole end of the ribbon product is the negative pole;

    • Drawing unit: mm
    • Package: 6565 package, overall size: 6.5 × six point five × 1.52 (L × W × H) [unit: mm]
    • Package material: aluminum nitride ceramic bracket, plane lens
    • Number of package chips: 4 pcs
    • Dimension tolerance is ± 0.20 mm unless otherwise specified
  • Photoelectric characteristic parameters
  • UVC photoelectric parameters and spec range (@ 400mA, Ta = 25 ℃, Rh = 30%)

    Item Symbol Min. Typ. Max. Bin Unit
    Peak wavelength λp 270 / 280 Such as groups nm
    Optical power P0 80 / 150 / mW
    working voltage Vf 10 / 14 1 V
    Driving current If / 400 / / mA
    Maximum working current Ifmax / 600 / / mA
    Irritation angle 1/2 / 120 / / deg.
    FWHM of wave crest Δλ / 12 / / nm
    thermal resistance RΘj-b / 15 / / ℃/W
    • These values were measured by a spectral analyzer and an integrating sphere measuring system. The tolerances are as follows: operating voltage (Vf): ± 2%; optical power (P0): ± 10%; peak wavelength (λp):±3.0 nm
    • Although all LEDs are tested by our equipment, some values may be slightly different depending on the conditions of the test equipment.

    Wavelength range

    Groups W01
    Wavelength (nm) 270~280

    Optical power range

    Groups P205P255P256
    Optical power (MW) 80~100100~125125~150

    Voltage range

    Groups VG1VG2VG3VG4
    Voltage (V) 10~1111~1212~1313~14

    Environmental conditions for storage and use

    Item Symbol Unit Value
    Service temperature TOPR -30 ~ +60
    Storage temperature TSTG -40 ~ +100
    • Optical power refers to the total optical output power collected by integrating sphere;
    • The measurement errors of forward voltage, peak wavelength and radiation power are ± 0.2V, ± 3nm and ± 10%, respectively. The increase of injection current will lead to temperature rise, The light attenuation of LED lamp beads will be accelerated, and the service life will be shortened; when the LED lamp beads are tested or used beyond the above limit values, the reliability of the device may be affected and permanent damage may be caused.
    • It is recommended to provide a good cooling environment or cooling system to obtain the best effect.
  • Legend of photoelectric parameters
    • The above test data are from DUVTek, and the actual curve will be different depending on the sampling situation.
  • Reflow soldering
  • Reflow soldering profile
    • The patch shall be reflow soldered with high temperature solder paste,The peak temperature should not be greater than 260 ℃The peak time should be controlled within 10 seconds and the reflux time should not be more than 5 minutes.
    • Reflow welding should not be more than once;
    • It is not recommended to repair after welding dark purple led. When repair is inevitable, double head soldering iron must be used, and the product itself should not be damaged while operating carefully;
    • When welding, do not apply pressure on the deep UV LED during heating;
    • It is recommended to use convection reflow welder with temperature above 7.

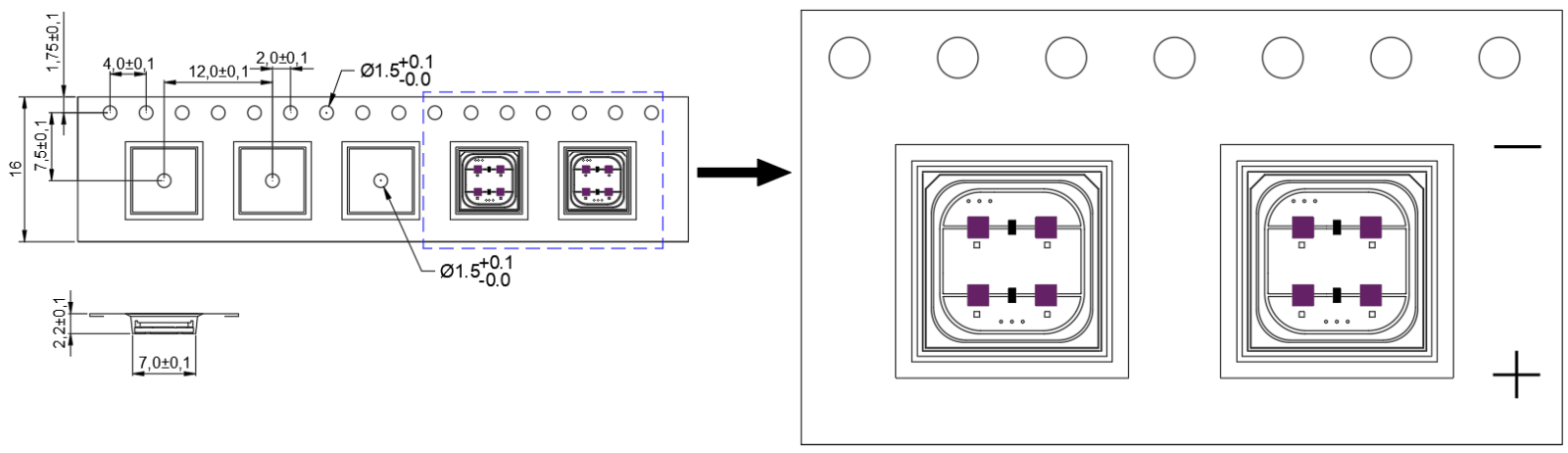

  • Packaging specification
  • Packing instructions

    Aluminum foil bag packaging
    • The camber angle of the carrier is not more than 1 mm / 100 mm, and the length is 250 mm;
    • All dimensions meet eia-481-b requirements;
    • Materials: conductive polyester polystyrene plastic.

    Label description

    label interpretation
    SPEC Wxxpxxxvxxa1, please refer to spec scope for specific meaning
    LOTS Batch No
    QTY number
    Date date
  • Reliability test
  • Test items experimental condition standard Failure ratio
    Conventional drive T = 25 ℃, calibration current, continuous lighting for 1000 hours Dead lights 0/35
    Thermal Shock -40-120 ℃, 500 cycles, 15 min / cycle Dead lights 0/35
    Reflow soldering Peak temperature < 170 ℃, 10 temperature zone reflux furnace, once Dead lights 0/100
    Antistatic R=1.5kΩ, C=100pF,Voltage level=2kV Dead lights 0/10
  • Conditions of use
    • LED should avoid direct contact with harmful substances, such as sulfur, chlorine, phthalate, etc.
    • Exposure to corrosive gases must be avoided during operation and storage.
    • The silver plated metal parts are not only affected by the corrosive gas emitted from the final product, but also by the gas permeated by the external environment.
    • Extreme environments such as sudden changes in ambient temperature or high humidity that may cause condensation must be avoided.
  • Cleaning precautions
    • Do not use brush or use organic solvent (i.e. acetone, TCE, etc.) for cleaning, otherwise the LED resin may be damaged.
    • Isopropanol (IPA) is the recommended solvent for cleaning LEDs under the following conditions.
    • Cleaning condition: IPA, maximum 25 ℃. Within 60 seconds
    • Ultrasonic cleaning is not recommended.
    • Predictive testing should be carried out in conjunction with the actual cleaning process to verify that the process does not damage the LED.
  • Thermal management conditions
    • Thermal management is the most important part of the cooling performance of deep UV LED package.
    • Even from the beginning, the thermal design of the product must be carefully considered.
    • The synergy efficiency between calorific value and input power is affected by the thermal resistance of circuit board and the density of LED layout and other components.
    • Deep UV LED should be welded on metal PCB with high thermal conductivity. Or combine the deep UV LED with a metal PCB, a heat block, a mini (air or water cooler, etc.).
    • Please design LED module or system so that the temperature of LED package does not exceed the maximum junction temperature (TJ).
  • Electrostatic discharge (ESD)
    • LED is sensitive to static or surge voltage and current. Electrostatic discharge may damage the LED chip. Moreover, it can affect the reliability of LED package life. When handling led, the following ESD measures are recommended: 1) please wear wrist strap, anti-static clothes, feet and gloves. 2) Please set grounding or anti-static floor paint, grounding or surge protection of workstation equipment or power supply, pulse generator, current / voltage drive circuit and other tools. 3) ESD protection - table / table, mat made of conductive material.
    • All equipment, equipment and machines used in product assembly need to be grounded. When designing commercial products, please apply for surge protection after review.
    • If the tools or equipment contain insulating materials such as glass or plastic, the following measures are strongly recommended: 1) use conductive materials to dissipate static charges; 2) prevent moisture from generating electric charges; 3) insert ion fans (ion generators) to neutralize charges.
    • It is recommended that the customer check whether the LED is damaged by ESD during execution, and check the characteristics of LED in application. Led damage can be detected by forward voltage detection (measurement) under low current (≤ 1.0mA).
    • ESD damaged LEDs may generate current at low voltage. *Failure criteria: V at if = 0.5mAf < 4.0V。
  • Human protection
  • Human protection
    • All assembly workers, observers and bystanders must have eye and skin protection;
    • It is forbidden to observe with naked eyes (including through microscope) and handle deep UV LED naked in operation;
    • Do not touch the optical structure of the deep UV lamp bead;
    • This product is a humidity sensitive product, the recommended storage temperature is 18 ℃~ 30 ℃, the humidity is 30% ~ 60%, and sealed. In order to ensure the product quality, it is recommended to use it within one year after leaving the factory if the outer packing bag is not opened; if the outer packing bag is opened, it is recommended to use it within 24 hours, and re seal it for storage after 24 hours. Dehumidification measures should be taken before the next use: temperature: 65 ℃ time: 5h.
